How to Measuring for Full Solid Raised
Important Notes
Measure with confidence using our easy guide for perfectly fitting Full Solid Raised shutters. Simple step-by-step instructions make your sizing effortless.
Important Information
Check the openings for obstructions like window furniture, inward-opening doors, or existing architraves. The shutter style, frame choice, and blade size influence the installation process.
*Please note that these measurements instructions are not suitable for bay windows
Frames
L Frames and Z Frames are suitable for inside recess.
A standard frame is 49.8mm deep; 63mm blades do not protrude out the back of the frame.
Check depth of reveal clearance
Minimum clearance for blade size are as follows:
- 63mm—18.05mm
- 76mm—24.4mm
- 89mm—30.8mm
Full Solid Raised- Inside Recess
To mount the Shutter inside your window recess follow these instructions.
Step1
Measure the Width
Measure the width of your window recess in three places. Use the smallest measurement as your width and deduct 5mm.
This is your width measurement.
Step2
Measure the Drop
Measure from the bottom of the opening to the sash break. Deduct 2.5mm.
This is your drop measurement.
Step3
Enter your Measurements

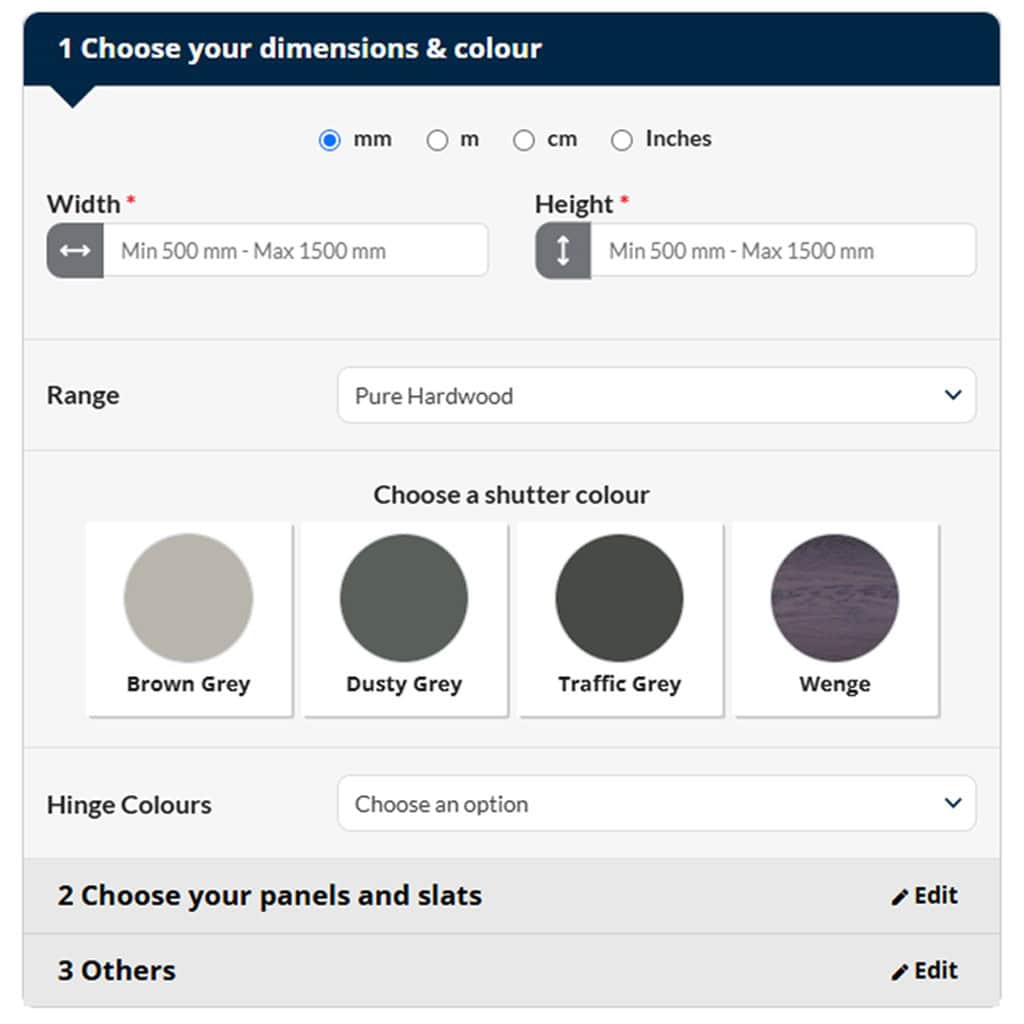

Go to your chosen product, enter your width and drop measurements.
Full Solid Raised - Inside Recess - Sash Window
To mount the Shutter inside your window recess follow these instructions.
Step1
Measure the Width
Measure the window recess width at three points, use the smallest measurement, and subtract 5mm.
This is your width measurement.
Step2
Measure the Drop
Measure from the bottom of the opening to the center or, for sash windows, to the break point. Then, deduct 2.5mm.
This is your drop measurement.
Step3
Enter your Measurements
Go to your chosen product, enter your width and drop measurements.
